Air-Piloted Pneumatic Solenoid Valves 2 Way 5 Port AC100V AC200V DC24V

Place of Origin : China

Brand Name : Konganei

Certification : CE

Model Number : 240-4A2-02

MOQ : 1Piece

Price : USD 15-22

Packaging Details : Plastic bags,Boxes, Cartons, Pallets,or according to customer's requirement

Delivery Time : within 1-30 working days after payment

Payment Terms : T/T , paypal, Western Union

Supply Ability : 10000pcs

Contact Now

Air-Piloted Pneumatic Solenoid Valves 2 Way 5 Port AC100V AC200V DC24V

The 240 series valves are suitable for operating mid-sized cylinders of bore sizes 63mm [2.480in.] to 100mm [3.937in.], and offer every required function. In addition to 5-port 2-position types, closed center and exhaust center 3-position valves are included in the product range.

The series realizes optimum system design, offering space saving as well as reducing wiring and piping work.

Specification:

Basic model

Solenoid specifications

Single solenoid

Double solenoid

3-position double solenoid

For direct piping For F type manifold

240-4E1

240-4E2

243-4E2

For standard type sub-base For A type, B type manifolds

A240-4E1

A240-4E2

A243-4E2

For pug-in type sub-base For AW, BW type manifolds

W240-4E1

W240-4E2

W243-4E2

Media

Air

Operation type

Internal pilot type

Number of positions, Number of ports

2 positions, 5 ports

3 positions, 5 ports

Valve function

Closed center (standard) or Exhaust center (optional)

Effective area〔Cv〕 mm2

16〔0.88〕(11.3〔0.62〕) n* 1

15〔0.83〕(11〔0.61〕)Note 1

Port size

P, A, B: Rc1/4 R: Rc1/8 (P, A, B, R: Rc1/4 PR: Rc1/8) _e 2

Lubrication

Not required

Operating pressure range MPa {kgf/cm2} [psi.]

0.17 〜0.7 {1.7 〜7.1} [25 〜102]

Proof pressure MPa {kgf/cm2} [psi.]

1.05 {10.7} [152]

Response time ms ON/OFF

DC24V

25/35

20/20

25/55

AC100V, AC200V

25/25

20/20

25/45

Operating temperature range (atmosphere and media) [°F]

5〜50 [41〜122]

Shock resistance m/s2{G}

Lateral direction

1373.0 {140.0}

Axial direction

451.1 {46.0} | 264.8 {27.0} | 588.4 {60.0}

Mounting direction

Any

Maximum operating frequency Hz

5

Minimum time to energize ms

——

50

——

Operating Principles and Major Parts

Air-Piloted Pneumatic Solenoid Valves 2 Way 5 Port AC100V AC200V DC24VAir-Piloted Pneumatic Solenoid Valves 2 Way 5 Port AC100V AC200V DC24V

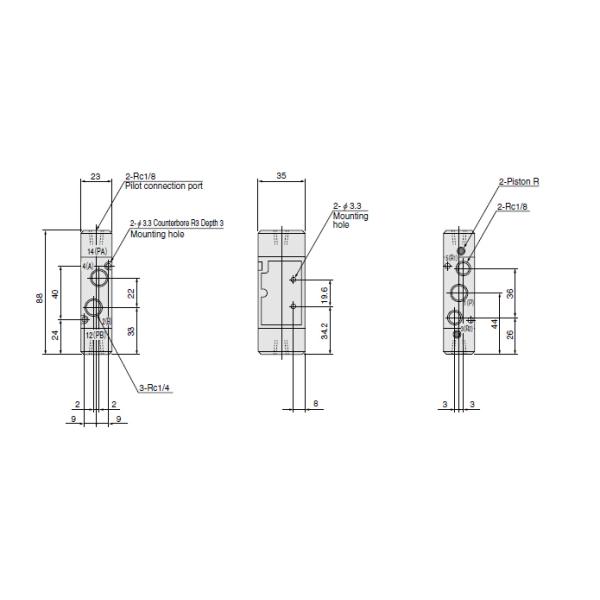

Dimensions:

Air-Piloted Pneumatic Solenoid Valves 2 Way 5 Port AC100V AC200V DC24V
