SCG353A047 2/2 Way 0.35-0.85Mpa Diaphragm Dust Collector Pulse Jet Valve

Name: SCG353A047 22 Way 035085Mpa Diaphragm Dust Collector Pulse Jet Valve
Brand: or OEM
Price: 20 USD

Wholesale SCG353A047 2/2 Way 0.35-0.85Mpa Diaphragm Dust Collector Pulse Jet Valve from china suppliers

Place of Origin : China, USA

Brand Name : or OEM

Certification : ce

Model Number : SCG353A047,SCG353A050,SCG353A051

MOQ : 1 piece

Price : USD20-30

Packaging Details : Boxes, Cantons, Plastic bags

Delivery Time : within 1-30 working days after payment

Payment Terms : T/T in advance,Paypal,credit card

Supply Ability : 1000 pcs

Contact Now

SCG353A047 2/2 way 0.35-0.85Mpa Diaphragm Dust collector pulse jet valve

FEATURES
• The pulse diaphragm valves are especially designed for dust collector service applications, combining high flow, long life and extremely fast opening and closing to produce reliable and economical operation

• The high flow, angle type bodies in combination with the special main diaphragm assemblies give theunique operating features required for dust collector service applications

• The design with integral compression fittings will facilitate installation because there is no need for threaded piping

• The high quality diaphragms are reinforced and wear resistant to guarantee a long operating life, even under harsh conditions

• Integral pilot operated valves satisfy all relevant EC directives

Ordering Code	Port Size	Orifice	Flow Value		Coil type
Ordering Code	G Threaded	mm	m^3/h	l/min	Coil type
SCG353A047	1 1/2"	52	46	768	400425
SCG353A050	2"	66	77	1290	400425
SCG353A051	2 1/2"	66	92	1540	400425
SCG353.060	3"	75	170	2833	400425

Construction
Body	Aluminum
Core tube	Stainless steel
Core and Plugnut	Stainless steel
Core Spring	Stainless steel
Sealing & disc	CR (chloroprene)
Diaphragm	NBR(nitrile/buna-n)
Shading coil	Copper
Connector	DIN43650A
Voltage	DC: 24V, AC: 24V,48V,110V,230V
Working Temperature	-20 to +85℃
Protection Class	IP65
Coil Insulation Class	F
Working Pressure	0.35-0.85Mpa

SCG353A047 2/2 Way 0.35-0.85Mpa Diaphragm Dust Collector Pulse Jet Valve

Ordering Code	A	B	C	D	E	F	G	H	J	K	L	Weight
SCG353A047	80	50	30	71	130	136	45	G 3/8"	131	160	178	1.40
SCG353A050	80	50	30	95	168	165	45	G 3/8"	165	210	227	2.90
SCG353A051	80	50	30	95	168	165	45	G 3/8"	165	210	227	2.60
SCG353.060	80	50	30	143	240	192	45	G 1/2"	165	258	275	4.10

Product Tags:

pulse solenoid valve

pulse jet valve

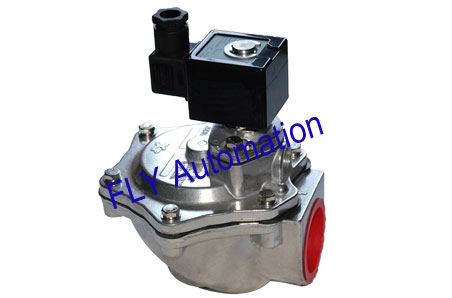

SCG353A047 2/2 Way 0.35-0.85Mpa Diaphragm Dust Collector Pulse Jet Valve Images
