MSV86522 Series Pneumatic Manual Valve 2 Position 5 Way Mechanical

  • 1
  • 2
  • 3

Brand Name : TECHNO

Model Number : MSV86522

Certification : ISO Standand

Place of Origin : China

MOQ : 1 PC

Price : Negotiation

Payment Terms : T/T, Western Union, MoneyGram Paypal

Supply Ability : 500 PCS Per Week

Delivery Time : 7 working Days

Packaging Details : Plastic bags, boxes, cartons, Pallets or As customer's requirement

Fluid : Air

Position and Way Number : 2 position 5 way

CV values : 0.89

Joint Pipe Bore : G1/4"

Material : Aluminum Alloy

Seals : NBR

Contact Now

MSV86522 Series 2 Position 5 Way Mechanical Valve Manual Pneumatic Controll Valve Air Hand Operate

Specification

Fluid: Air
Position and Way Number: 2 position 5 way
Operating pressure: 0~8bar
Working temperature: 0~60°C
Effective section Area: 16mm2
CV values: 0.89
Joint Pipe Bore: G1/4"
Material: Aluminum Alloy
Seals: NBR


Model MSV86522

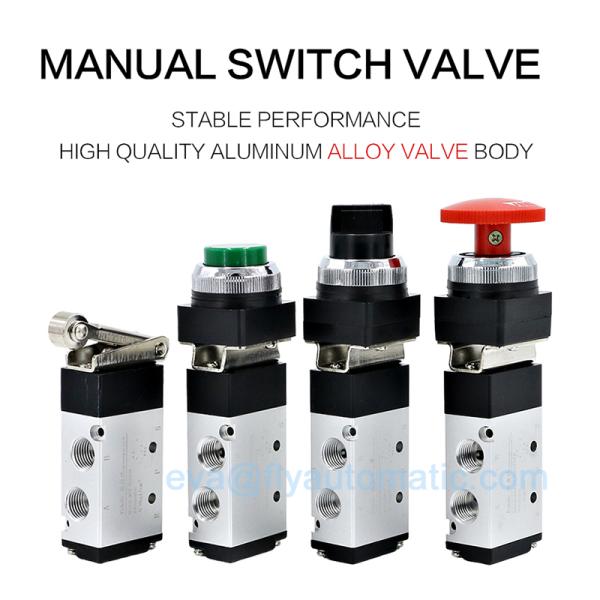

Button type TB:Selective knob PB: Large Round Button PP: With lock button PPL: Convex Round Button R:Roller type
Port Size G1/4''
Working Medium Filtered Air
Porsition and Way NO. 5/2 way
Working Pressure Range 0~0.08Mpa
Operating Temperature Range 0~60°C

Model MSV86321 MSV86522 MSV98322
Working Medium Micron Filtered Air
The Position Counting Two-position Three-way Tow-position Four-way Two-position Five-way
Joint Pipe Bore G1/8 G1/4 G1/4
Operating Temperature 0~60 degree centigrade
Effective Sectional Area 12mm 2 (CV=0.67) 16mm 2 (CV=0.89) 16mm 2 (CV=0.89)
Working Pressure 0~0.8Mpa

Model Joint Pipe Bore
MSV86321 G1/8
MSV86321R(MOV-02) G1/8
MSV86321LB G1/8
MSV86321EB(MOV-03) G1/8
MSV86321TB(MOV-01) G1/8
MSV86321PB G1/8
MSV86321PPL(MOV-04) G1/8
MSV86321PP G1/8
MSV98322 G1/4
MSV983221R G1/4
MSV98322LB G1/4
MSV98322EB G1/4
MSV98322TB G1/4
MSV98322PB G1/4
MSV98322PPL G1/4
MSV98322PP G1/4
MSV86522 G1/4
MSV86522R G1/4
MSV86522LB G1/4
MSV86522EB G1/4
MSV86522TB G1/4
MSV86522PB G1/4
MSV86522PPL G1/4
MSV86522PP G1/4

MSV86522 Series Pneumatic Manual Valve 2 Position 5 Way MechanicalMSV86522 Series Pneumatic Manual Valve 2 Position 5 Way Mechanical
