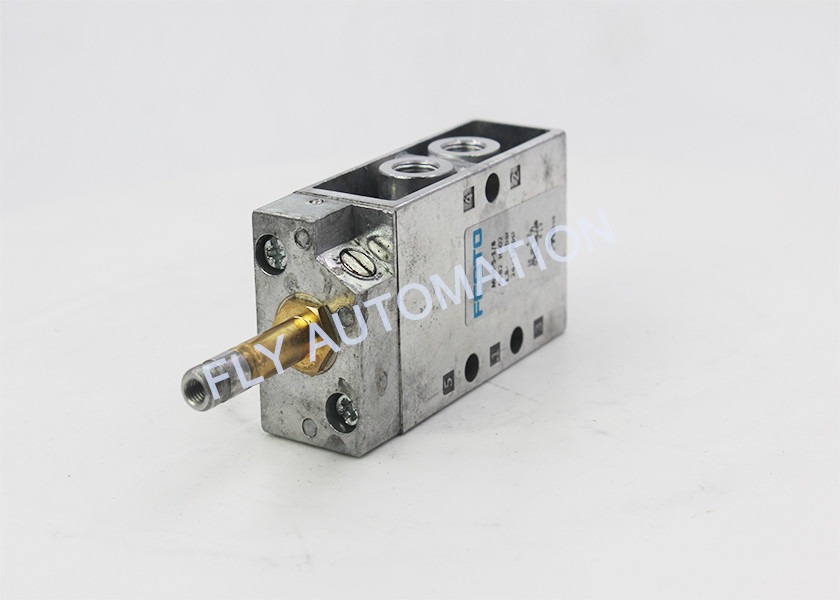

| Ordering Code: MFH-5-1/8 9982 |
| Technical Data: |
| Valve function: 5/2-way, monostable |
| Type of actuation: Electric |
| Construction width: 26 mm |
| Standard nominal flow rate: 500 l/min |
| pneumatic working port: G1/8 |
| Operating voltage:Via solenoid coil, must be ordered separately |
| Operating pressure:0.18-0.8 MPa 1.8-8 bar |
| Design: Poppet seat |
| Type of reset: Mechanical spring |
| Degree of protection: IP65 |
| Nominal size: 5 mm |
| Grid dimension: 27 mm |
| Exhaust-air function: With flow control option |
| Sealing principle: Soft |
| Mounting position: optional |
| Manual override: Detenting |
| Type of piloting: Pilot actuated |
| Flow direction: Non-reversible |
| Symbol: 00991035 |
| Switching time off: 36 ms |
| Switching time on: 8 ms |
| Max. positive test pulse with 0 signal: 2200 µs |
| Max. negative test pulse with 1 signal: 3700 µs |
| Characteristic coil data: See solenoid coil, to be ordered separately |
| Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium:Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC: 1 - Low corrosion stress |
| Storage temperature : -20 °C ... 60 °C |
| Media temperature : -10 °C ... 60 °C |
| Ambient temperature: -5 °C ... 40 °C |
| Product weight : 270 g |
| Electrical connection: Via F coil, to be ordered separately |
| Type of mounting: Either On manifold rail or With through-hole |
| Pilot exhaust port 82: M5 |
| Pneumatic connection, port 1 ,2, 3, 4, 5 : G1/8 |
| Note on materials: RoHS-compliant |
| Material seals: NBR, TPE-U(PU) |
| Material housing: Die-cast aluminium |
