Pneumatic Air Cylinder, Double Acting Cylinder ADN Cylinder ADN-20-25-I-P-A
Compact cylinders ADN/AEN, to ISO 21287
Key Feature
The compact cylinder series ADN/AEN comply with the standard ISO 21287
• The ADN/AEN is characterised by its compact design and broad area of application thanks to the large number of variants
• The variants can be configured according to individual needs thanks to the modular product system
Powerful
• Integrated cushioning for absorbing residual energy.
• Long service life thanks to exceptional cushioning characteristics and minimal friction factors.
Cushioning types
Cushioning p
Mode of operation
• The drive has elastic polymer end-position cushioning
Cushioning PPS
Mode of operation
• The drive has self-adjusting, pneumatic end-position cushioning

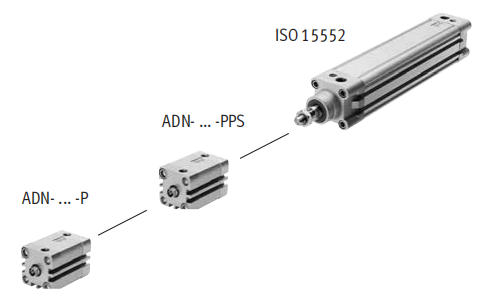

Cushioning capacity of ISO 21287 and ISO 15552
In terms of cushioning capacity, the compact cylinder ADN-...-PPS fills the gap between
ADN-...-P and standards-based cylinders with ISO 15552.
ADN Operating Conditions
| Piston | 1/2 | 5/8 | 3/4 | 1 | 1 1/4 | 1 5/8 | 2 |
| Operating medium | Compressed air in accordance with ISO 8573-1:2010 [7:4:4] |
| Note on operating/pilot medium | Operation with lubricated medium possible (in which case lubricated operation will always be required) |
| Operating pressure psi | 14.5 … 145 | 8.7 … 145 |
| Ambient temperature ℉ | – 4 … +176 |
Products shopping guide
For example: you want to purchase a batch of cylinders but you don't know which type you are really want, so you can tell me all your requirement and I'll recommend to you.
Warranty
All item Comes with Basic 3 Month Sellers Warranty, if item defective in 3 Month, We will offer replacement without extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month, Buyers can still send it back, We will contact suppliers or Manufactory for Warranty. Buyers Might Need to pay the Shipping fee For resend the replaced item.
Competitive Advantage
Our product features Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) Registration support.
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.
