Lightweight Aluminum ISO15552 TPE-U PU ISO 6431 FESTO Adjustable Pneumatic Cylinder 646775 DSBG-80-100-PPV-N3 For Industrial

Brand Name : FESTO or OEM

Model Number : 646776 DSBG-80-125-PPVA-N3 646790 DSBG-80-125-PPSA-N3 2390144 DSBG-200-125-PPVA-N3 646777 DSBG-80-160-PPVA-N3 646791 DSBG-80-160-PPSA-N3 2390145 DSBG-200-160-PPVA-N3 646778 DSBG-80-200-PPVA-N3 646792 DSBG-80-200-PPSA-N3 2390146 DSBG-200-200-PPVA-N

MOQ : 1pc

Price : EXW USD15-165

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1200 pcs per month

Delivery Time : 8-10 working days

Packaging Details : plastic bag, carton，OPP bag

Cylinder barrel : Anodized wrought aluminum alloy

Design : Piston Piston rod

Working Pressure : 0-10Bar

Operating medium : Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium : Lubricated operation possible (in which case lubricated operation will always be required)

Ambient temperature : -20°C-80°C

Piston Material : High-alloy steel,and High-alloy stainless steel

Seals : Polyurethane, nitrile rubber and Fluoro rubber

Bearing and end cap : Wrought aluminium aloy

Constructions : ISO 15552 standard, VDMA 24364-B1/B2-L (cleanroom compatibility), RoHS-compliant

Contact Now

Lightweight Aluminum ISO15552 TPE-U(PU) ISO 6431 FESTO Adjustable pneumatic (PPV) pneumatic cylinder 646775 DSBG-80-100-PPVA-N3 646789 DSBG-80-100-PPSA-N3 2390143 DSBG-200-100-PPVA-N3

Order Codes:

1638842 DSBG-32-25-PPVA-N3	1645460 DSBG-32-25-PPSA-N3	2159622 DSBG-125-25-PPVA-N3
1638843 DSBG-32-40-PPVA-N3	1645461 DSBG-32-40-PPSA-N3	2159623 DSBG-125-40-PPVA-N3
1638844 DSBG-32-50-PPVA-N3	1645462 DSBG-32-50-PPSA-N3	2159624 DSBG-125-50-PPVA-N3
1638845 DSBG-32-80-PPVA-N3	1645463 DSBG-32-80-PPSA-N3	2159625 DSBG-125-80-PPVA-N3
1638846 DSBG-32-100-PPVA-N3	1645464 DSBG-32-100-PPSA-N3	2159626 DSBG-125-100-PPVA-N3
1638848 DSBG-32-125-PPVA-N3	1645465 DSBG-32-125-PPSA-N3	2159627 DSBG-125-125-PPVA-N3
1638849 DSBG-32-160-PPVA-N3	1645466 DSBG-32-160-PPSA-N3	2159628 DSBG-125-160-PPVA-N3
1638850 DSBG-32-200-PPVA-N3	1645467 DSBG-32-200-PPSA-N3	2159629 DSBG-125-200-PPVA-N3
1638851 DSBG-32-250-PPVA-N3	1645468 DSBG-32-250-PPSA-N3	2159630 DSBG-125-250-PPVA-N3
1638852 DSBG-32-320-PPVA-N3	1645469 DSBG-32-320-PPSA-N3	2159631 DSBG-125-320-PPVA-N3
1638853 DSBG-32-400-PPVA-N3	1645470 DSBG-32-400-PPSA-N3	2159632 DSBG-125-400-PPVA-N3
1638854 DSBG-32-500-PPVA-N3	1645471 DSBG-32-500-PPSA-N3	2159633 DSBG-125-500-PPVA-N3
1634781 DSBG-32-...-PPVA-N3	1634560 DSBG-32-...-PPSA-N3	2158455 DSBG-125--PPVA-N3
1646547 DSBG-40-25-PPVA-N3	1646559 DSBG-40-25-PPSA-N3	2159907 DSBG-125-25-PPSA-N3
1646548 DSBG-40-40-PPVA-N3	1646560 DSBG-40-40-PPSA-N3	2159908 DSBG-125-40-PPSA-N3
1646549 DSBG-40-50-PPVA-N3	1646561 DSBG-40-50-PPSA-N3	2159909 DSBG-125-50-PPSA-N3
1646550 DSBG-40-80-PPVA-N3	1646562 DSBG-40-80-PPSA-N3	2159910 DSBG-125-80-PPSA-N3
1646551 DSBG-40-100-PPVA-N3	1646563 DSBG-40-100-PPSA-N3	2159911 DSBG-125-100-PPSA-N3
1646552 DSBG-40-125-PPVA-N3	1646564 DSBG-40-125-PPSA-N3	2159912 DSBG-125-125-PPSA-N3
1646553 DSBG-40-160-PPVA-N3	1646565 DSBG-40-160-PPSA-N3	2159913 DSBG-125-160-PPSA-N3
1646554 DSBG-40-200-PPVA-N3	1646566 DSBG-40-200-PPSA-N3	2159915 DSBG-125-200-PPSA-N3
1646555 DSBG-40-250-PPVA-N3	1646567 DSBG-40-250-PPSA-N3	2159916 DSBG-125-250-PPSA-N3
1646556 DSBG-40-320-PPVA-N3	1646568 DSBG-40-320-PPSA-N3	2159917 DSBG-125-320-PPSA-N3
1646557 DSBG-40-400-PPVA-N3	1646569 DSBG-40-400-PPSA-N3	2159918 DSBG-125-400-PPSA-N3
1646558 DSBG-40-500-PPVA-N3	1646570 DSBG-40-500-PPSA-N3	2159919 DSBG-125-500-PPSA-N3
1644503 DSBG-40-...-PPVA-N3	1645473 DSBG-40-...-PPSA-N3	2158471 DSBG-125-...-PPSA-N3
1646709 DSBG-50-25-PPVA-N3	1646723 DSBG-50-25-PPSA-N3	2029462 DSBG-160-25-PPVA-N3
1646710 DSBG-50-40-PPVA-N3	1646724 DSBG-50-40-PPSA-N3	2029463 DSBG-160-40-PPVA-N3
1646711 DSBG-50-50-PPVA-N3	1646725 DSBG-50-50-PPSA-N3	2029464 DSBG-160-50-PPVA-N3
1646712 DSBG-50-80-PPVA-N3	1646726 DSBG-50-80-PPSA-N3	2029465 DSBG-160-80-PPVA-N3
1646713 DSBG-50-100-PPVA-N3	1646727 DSBG-50-100-PPSA-N3	2029466 DSBG-160-100-PPVA-N3
1646714 DSBG-50-125-PPVA-N3	1646728 DSBG-50-125-PPSA-N3	2029467 DSBG-160-125-PPVA-N3
1646715 DSBG-50-160-PPVA-N3	1646729 DSBG-50-160-PPSA-N3	2029468 DSBG-160-160-PPVA-N3
1646716 DSBG-50-200-PPVA-N3	646730 DSBG-50-200-PPSA-N3	2029469 DSBG-160-200-PPVA-N3
1646717 DSBG-50-250-PPVA-N3	1646731 DSBG-50-250-PPSA-N3	2029470 DSBG-160-250-PPVA-N3
1646718 DSBG-50-320-PPVA-N3	1646732 DSBG-50-320-PPSA-N3	2029471 DSBG-160-320-PPVA-N3
1646719 DSBG-50-400-PPVA-N3	1646733 DSBG-50-400-PPSA-N3	2029472 DSBG-160-400-PPVA-N3
1646720 DSBG-50-500-PPVA-N3	1646734 DSBG-50-500-PPSA-N3	2029473 DSBG-160-500-PPVA-N3
1646708 DSBG-50-...-PPVA-N3	1646722 DSBG-50--PPSA-N3	2035926 DSBG-160--PPVA-N3
646740 DSBG-63-25-PPVA-N3	646754 DSBG-63-25-PPSA-N3	2536747 DSBG-160-25-P-N3
646741 DSBG-63-40-PPVA-N3	646755 DSBG-63-40-PPSA-N3	2536748 DSBG-160-40-P-N3
646742 DSBG-63-50-PPVA-N3	646756 DSBG-63-50-PPSA-N3	2536749 DSBG-160-50-P-N3
646743 DSBG-63-80-PPVA-N3	646757 DSBG-63-80-PPSA-N3	2536750 DSBG-160-80-P-N3
1646744 DSBG-63-100-PPVA-N3	646758 DSBG-63-100-PPSA-N3	2536751 DSBG-160-100-P-N3
646745 DSBG-63-125-PPVA-N3	646760 DSBG-63-125-PPSA-N3	2536752 DSBG-160-125-P-N3
646746 DSBG-63-160-PPVA-N3	646761 DSBG-63-160-PPSA-N3	2536753 DSBG-160-160-P-N3
646747 DSBG-63-200-PPVA-N3	646762 DSBG-63-200-PPSA-N3	2536754 DSBG-160-200-P-N3
1646748 DSBG-63-250-PPVA-N3	646763 DSBG-63-250-PPSA-N3	2536755 DSBG-160-250-P-N3
646749 DSBG-63-320-PPVA-N3	646764 DSBG-63-320-PPSA-N3	2536756 DSBG-160-320-P-N3
646750 DSBG-63-400-PPVA-N3	646765 DSBG-63-400-PPSA-N3	2536758 DSBG-160-400-P-N3
646751 DSBG-63-500-PPVA-N3	646766 DSBG-63-500-PPSA-N3	2536759 DSBG-160-500-P-N3
646739 DSBG-63-...-PPVA-N3	646753 DSBG-63-...PPSA-N3	2537196 DSBG-160--P-N3
646771 DSBG-80-25-PPVA-N3	646785 DSBG-80-25-PPSA-N3	2390139 DSBG-200-25-PPVA-N3
1646772 DSBG-80-40-PPVA-N3	646786 DSBG-80-40-PPSA-N3	2390140 DSBG-200-40-PPVA-N3
646773 DSBG-80-50-PPVA-N3	646787 DSBG-80-50-PPSA-N3	2390141 DSBG-200-50-PPVA-N3
646774 DSBG-80-80-PPVA-N3	646788 DSBG-80-80-PPSA-N3	2390142 DSBG-200-80-PPVA-N3
646775 DSBG-80-100-PPVA-N3	646789 DSBG-80-100-PPSA-N3	2390143 DSBG-200-100-PPVA-N3
646776 DSBG-80-125-PPVA-N3	646790 DSBG-80-125-PPSA-N3	2390144 DSBG-200-125-PPVA-N3
646777 DSBG-80-160-PPVA-N3	646791 DSBG-80-160-PPSA-N3	2390145 DSBG-200-160-PPVA-N3
646778 DSBG-80-200-PPVA-N3	646792 DSBG-80-200-PPSA-N3	2390146 DSBG-200-200-PPVA-N3
646779 DSBG-80-250-PPVA-N3	646793 DSBG-80-250-PPSA-N3	2390147 DSBG-200-250-PPVA-N3
646780 DSBG-80-320-PPVA-N3	646794 DSBG-80-320-PPSA-N3	2390148 DSBG-200-320-PPVA-N3
1646781 DSBG-80-400-PPVA-N3	646795 DSBG-80-400-PPSA-N3	2390149 DSBG-200-400-PPVA-N3
646782 DSBG-80-500-PPVA-N3	646796 DSBG-80-500-PPSA-N3	2390150 DSBG-200-500-PPVA-N3
646770 DSBG-80-...-PPVA-N3	646784 DSBG-80-...PPSA-N3	2389803 DSBG-200--PPVA-N3
646801 DSBG-100-25-PPVA-N3	646815 DSBG-100-25-PPSA-N3	2390139 DSBG-200-25-PPVA-N3
646802 DSBG-100-40-PPVA-N3	646816 DSBG-100-40-PPSA-N3	2390140 DSBG-200-40-PPVA-N3
646803 DSBG-100-50-PPVA-N3	646817 DSBG-100-50-PPSA-N3	2390141 DSBG-200-50-PPVA-N3
646804 DSBG-100-80-PPVA-N3	646818 DSBG-100-80-PPSA-N3	2390142 DSBG-200-80-PPVA-N3
646805 DSBG-100-100-PPVA-N3	646819 DSBG-100-100-PPSA-N3	2390143 DSBG-200-100-PPVA-N3
646806 DSBG-100-125-PPVA-N3	646820 DSBG-100-125-PPSA-N3	2390144 DSBG-200-125-PPVA-N3
646807 DSBG-100-160-PPVA-N3	646821 DSBG-100-160-PPSA-N3	2390145 DSBG-200-160-PPVA-N3
646808 DSBG-100-200-PPVA-N3	646822 DSBG-100-200-PPSA-N3	2390146 DSBG-200-200-PPVA-N3
646809 DSBG-100-250-PPVA-N3	646823 DSBG-100-250-PPSA-N3	2390147 DSBG-200-250-PPVA-N3
646810 DSBG-100-320-PPVA-N3	646824 DSBG-100-320-PPSA-N3	2390148 DSBG-200-320-PPVA-N3
1646811 DSBG-100-400-PPVA-N3	646825 DSBG-100-400-PPSA-N3	2390149 DSBG-200-400-PPVA-N3
646812 DSBG-100-500-PPVA-N3	646826 DSBG-100-500-PPSA-N3	2390150 DSBG-200-500-PPVA-N3
646800 DSBG-100--PPVA-N3	1646814 DSBG-100-...-PPSA-N3	2389803 DSBG-200--PPVA-N3

HOW TO ORDER:

Lightweight Aluminum ISO15552 TPE-U PU ISO 6431 FESTO Adjustable Pneumatic Cylinder 646775 DSBG-80-100-PPV-N3 For Industrial

Attribute	Specification
Compliance	ISO 15552 standard, VDMA 24364-B1/B2-L (cleanroom compatibility), RoHS-compliant
Construction	Modular design with double-acting operation for precise control
Components	Includes piston rod, cylinder barrel, seals, bearings, cushioning systems, and mounting accessories
Materials	- Cylinder Barrel/Piston: Anodized wrought aluminum alloy
	- Piston Rod: Hard-chrome-plated tempered steel or high-alloy stainless steel
	Seals: C8, FPM, HNBR (temperature-resistant options available)
Cushioning	Adjustable pneumatic (PPV), self-adjusting (PPS), or elastic cushioning options
Operating Pressure	Optimized for standard industrial pneumatic systems (refer to Festo guidelines)
Temperature Range	- Standard seals: -20°C to +80°C
Temperature Range	- Low-temperature seals: -40°C to +80°C (TPE-U variants)
Stroke Length	1 mm to 2800 mm (varies by model)
Bore Sizes	32 mm, 40 mm, 50 mm, 63 mm, 80 mm, 100 mm, 125 mm
Mounting	Flexible options: female thread, swivel mounts, or accessories (e.g., DPNC multi-position kit)
Weight	Varies by size (lightweight aluminum construction ensures easy integration)
Color	Natural metallic finish (anodized aluminum)
Lifespan	Extended durability due to corrosion-resistant materials and robust sealing systems
Pneumatic Ports	G1/8 to G1/2 connections, compatible with standard tubing
Special Features	- Optional protective bellows (DADB kit) for harsh environments
Special Features	- Cleanroom Class 6 (ISO 14644-1) compatibility

Datasheet:

Lightweight Aluminum ISO15552 TPE-U PU ISO 6431 FESTO Adjustable Pneumatic Cylinder 646775 DSBG-80-100-PPV-N3 For Industrial

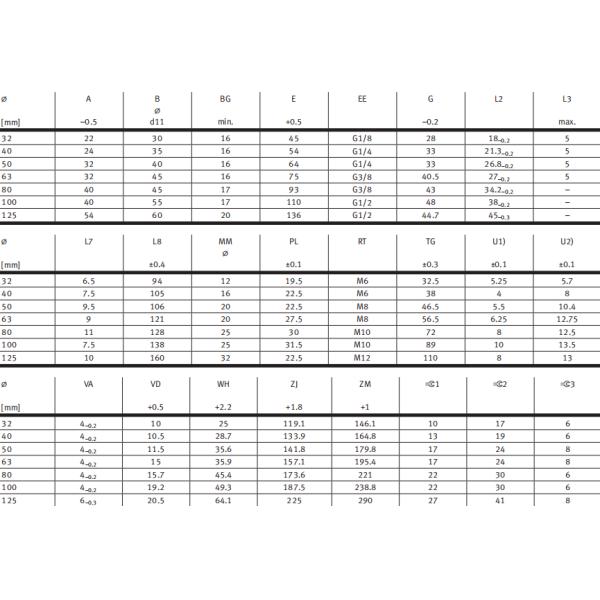

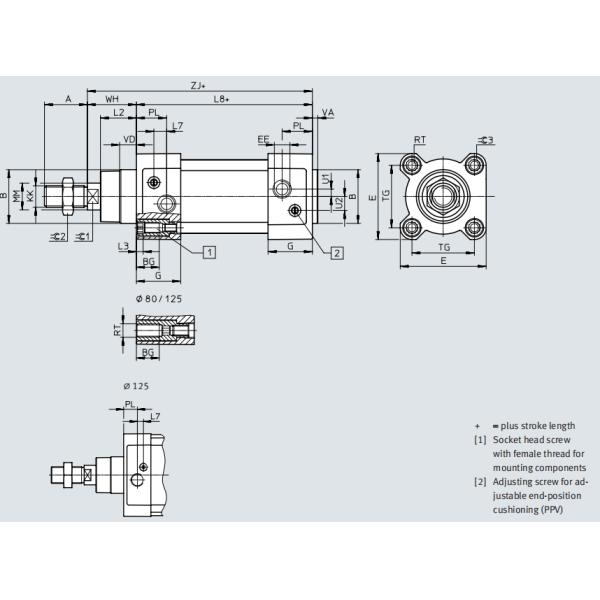

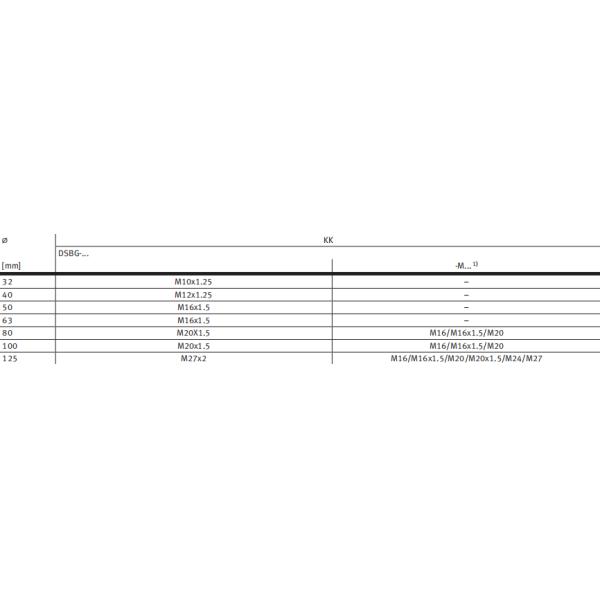

Dimension:

Lightweight Aluminum ISO15552 TPE-U PU ISO 6431 FESTO Adjustable Pneumatic Cylinder 646775 DSBG-80-100-PPV-N3 For Industrial

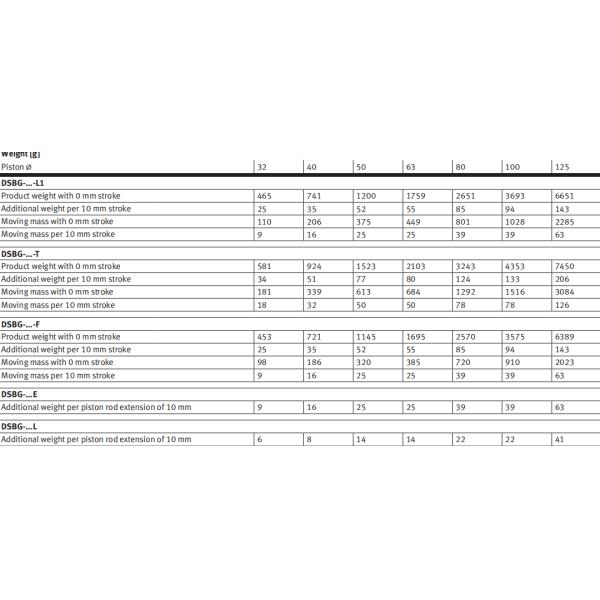

Weight:

Lightweight Aluminum ISO15552 TPE-U PU ISO 6431 FESTO Adjustable Pneumatic Cylinder 646775 DSBG-80-100-PPV-N3 For Industrial
