FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

Brand Name : FESTO or OEM

Model Number : 188079 ADVC-10-10-A-P 188221 ADVC-32-15-A-P 188267 ADVC-50-25-I-P 188094 ADVC-12-5-A-P 188222 ADVC-32-20-A-P 188288 ADVC-63-10-I-P

Place of Origin : CHINA GERMANY

MOQ : 1pc

Price : EXW USD5-63

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1200 pcs per month

Delivery Time : 1-10 working days

Packaging Details : plastic bag, carton，OPP bag

Cylinder barrel : Anodized wrought aluminum alloy

Design : Piston Piston rod

Working Pressure : 0-10Bar

Operating medium : Compressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot medium : Lubricated operation possible (in which case lubricated operation will always be required)

Ambient temperature : -20°C-80°C

Piston Material : High-alloy steel,and High-alloy stainless steel

Seals : Polyurethane, nitrile rubber and Fluoro rubber

Bearing and end cap : Wrought aluminium aloy

Pneumatic Connection : M3, M5, or G1/8/G1/4 threads (varies by piston size)

Contact Now

FETSO VDMA 24562 Short-stroke 2.5–25 mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

Order Codes:

526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P 188209 ADVC-32-5-I-P
526898 ADVC-4-5-P 188145 ADVC-20-5-I-P 188210 ADVC-32-10-I-P
526899 ADVC-6-5-P 188146 ADVC-20-10-I-P 188211 ADVC-32-15-I-P
526900 ADVC-6-10-P 188147 ADVC-20-15-I-P 188212 ADVC-32-20-I-P
526903 ADVC-10-5-P 188148 ADVC-20-20-I-P 188213 ADVC-32-25-I-P
526904 ADVC-10-10-P 188149 ADVC-20-25-I-P 188237 ADVC-40-5-I-P
530568 ADVC-12-5-P 188177 ADVC-25-5-I-P 188238 ADVC-40-10-I-P
530569 ADVC-12-10-P 188178 ADVC-25-10-I-P 188239 ADVC-40-15-I-P
188054 ADVC-4-2.5-A-P 188179 ADVC-25-15-I-P 188240 ADVC-40-20-I-P
188055 ADVC-4-5-A-P 188180 ADVC-25-20-I-P 188241 ADVC-40-25-I-P
188066 ADVC-6-5-A-P 188181 ADVC-25-25-I-P 188264 ADVC-50-10-I-P
188067 ADVC-6-10-A-P 188219 ADVC-32-5-A-P 188265 ADVC-50-15-I-P
188078 ADVC-10-5-A-P 188220 ADVC-32-10-A-P 188266 ADVC-50-20-I-P
188079 ADVC-10-10-A-P 188221 ADVC-32-15-A-P 188267 ADVC-50-25-I-P
188094 ADVC-12-5-A-P 188222 ADVC-32-20-A-P 188288 ADVC-63-10-I-P
188095 ADVC-12-10-A-P 188223 ADVC-32-25-A-P 188289 ADVC-63-15-I-P
188123 ADVC-16-5-A-P 188247 ADVC-40-5-A-P 188290 ADVC-63-20-I-P
188124 ADVC-16-10-A-P 188248 ADVC-40-10-A-P 188291 ADVC-63-25-I-P
188125 ADVC-16-15-A-P 188249 ADVC-40-15-A-P 188312 ADVC-80-10-I-P
188126 ADVC-16-20-A-P 188250 ADVC-40-20-A-P 188313 ADVC-80-15-I-P
188127 ADVC-16-25-A-P 188251 ADVC-40-25-A-P 188314 ADVC-80-20-I-P
188155 ADVC-20-5-A-P 188272 ADVC-50-10-A-P 188315 ADVC-80-25-I-P
188156 ADVC-20-10-A-P 188273 ADVC-50-15-A-P 188336 ADVC-100-10-I-P
188157 ADVC-20-15-A-P 188274 ADVC-50-20-A-P 188337 ADVC-100-15-I-P
188158 ADVC-20-20-A-P 188275 ADVC-50-25-A-P 188338 ADVC-100-20-I-P
188159 ADVC-20-25-A-P 188296 ADVC-63-10-A-P 188339 ADVC-100-25-I-P
188187 ADVC-25-5-A-P 188297 ADVC-63-15-A-P
188188 ADVC-25-10-A-P 188298 ADVC-63-20-A-P
188189 ADVC-25-15-A-P 188299 ADVC-63-25-A-P
188190 ADVC-25-20-A-P 188320 ADVC-80-10-A-P
188191 ADVC-25-25-A-P 188321 ADVC-80-15-A-P
188090 ADVC-12-5-I-P 188322 ADVC-80-20-A-P
188091 ADVC-12-10-I-P 188323 ADVC-80-25-A-P
188113 ADVC-16-5-I-P 188344 ADVC-100-10-A-P
188114 ADVC-16-10-I-P 188345 ADVC-100-15-A-P
188115 ADVC-16-15-I-P 188346 ADVC-100-20-A-P
188116 ADVC-16-20-I-P 188347 ADVC-100-25-A-P

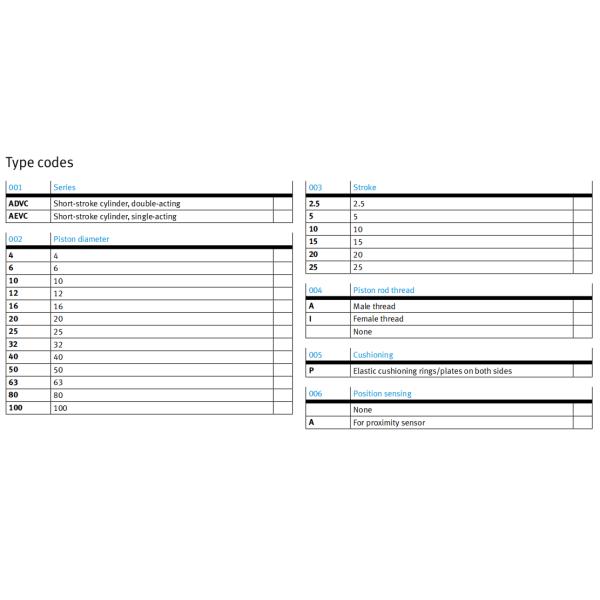

HOW TO ORDER:

FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

Attribute Details
Components Cylinder barrel, cover, piston rod, rod seal, cushioning rings, proximity switch slots
Material - Barrel/Cover: Anodized aluminium
- Piston Rod: Aluminium (ADVC-4) / High-alloy steel (ADVC-6 to 100)
- Rod Seal: Nitrile rubber (ADVC-4) / Polyurethane (ADVC-6 to 100)
Structure Double-acting design with elastic cushioning at both ends; compact, space-saving construction
Operating Pressure 0.06–1 MPa (0.6–10 bar, 8.7–145 psi) depending on piston diameter
Temperature Range -20°C to +80°C (ambient; consider proximity switch limits)
Standards Compliance B14 (mounting hole pattern)
- VDMA 24364-B1/B2-L (LABS/PWIS conformity)
- RoHS-compliant
Color Natural anodized aluminum finish (metallic)
Weight 3–2400 g (varies by piston diameter and stroke length; see product tables)
Dimensions - Diameter: 4–100 mm
Stroke Length: 2.5–25 mm
Impact Energy 0.003–1.20 J (adjustable via elastic cushioning)
Mounting Options Through-hole mounting; VDMA 24562 hole pattern for diameters ≥32 mm
Position Sensing Integrated slots for contacting or contactless proximity switches
Pneumatic Connection M3, M5, or G1/8/G1/4 threads (varies by piston size)
Operating Medium Compressed air (ISO 8573-1:2010 [7:4:4]); optional lubrication

Datasheet:

FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

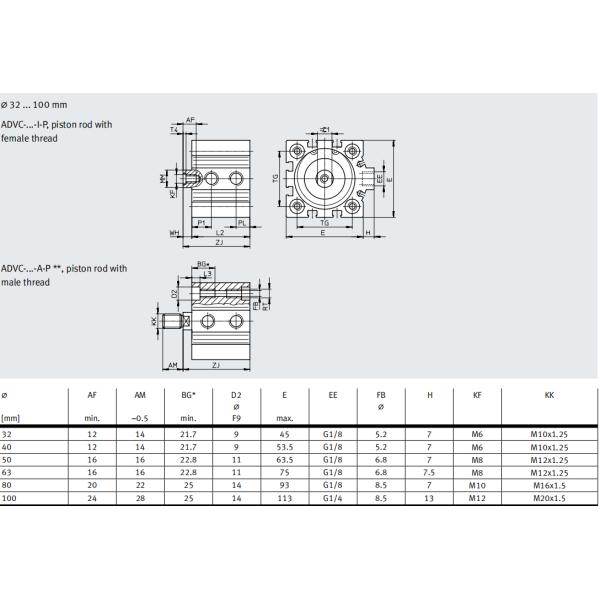

Dimension:

FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-PFETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-PFETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-PFETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-PFETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

Materials:

FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P

Weight:

FETSO VDMA24562 Short Stroke 2.5–25 Mm 526897 ADVC-4-2.5-P 188117 ADVC-16-25-I-P
